Current Location：Home - Sole cleaning machine

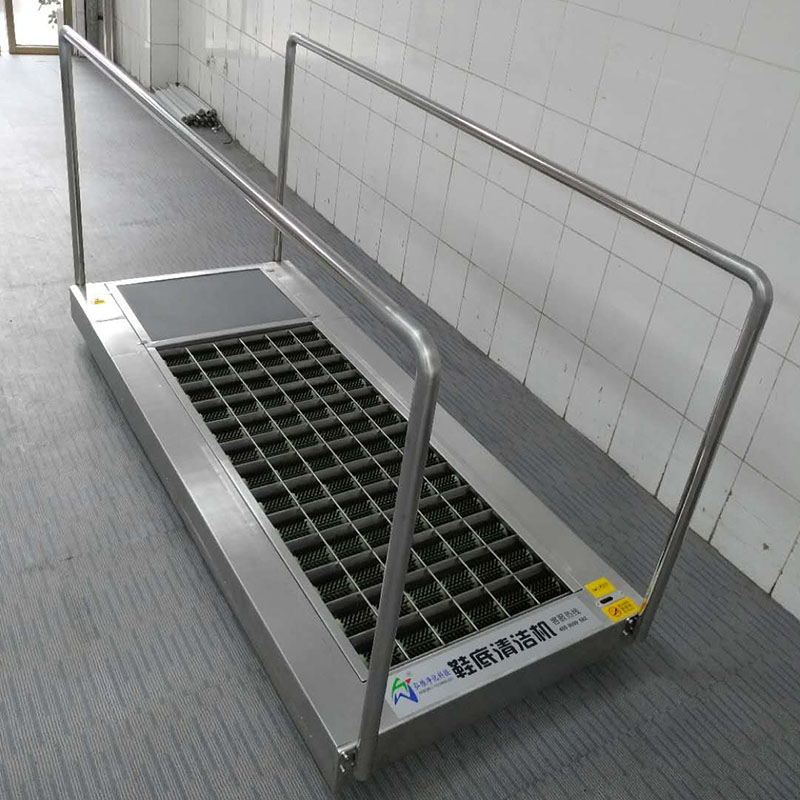

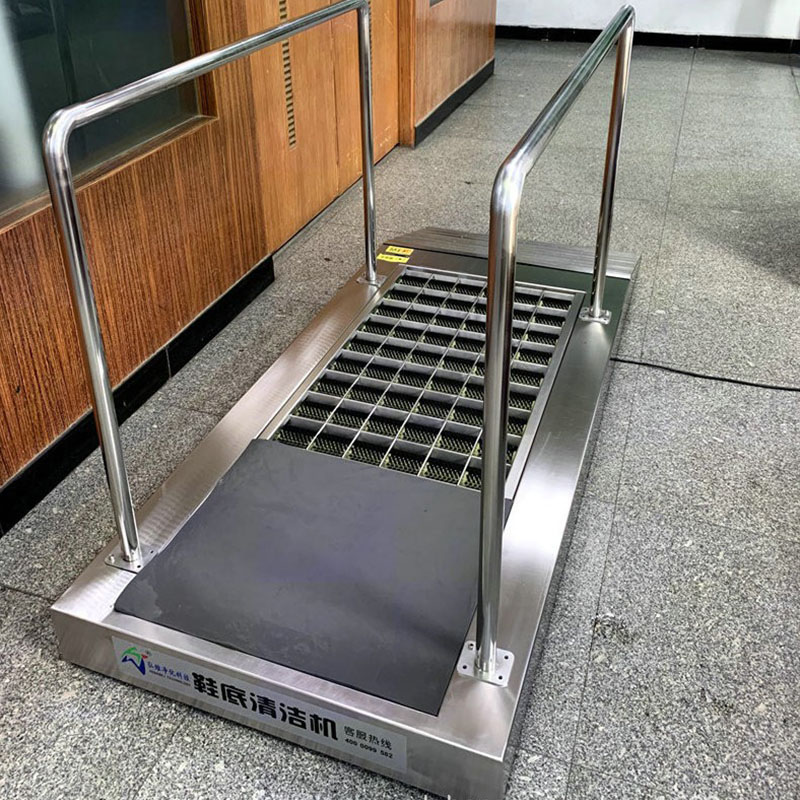

	Roller sole cleaning machine

Roller-type sole cleaning machine

Working principle

The flat shoes are stepped on by the roller brush. The brush, soaked in water, circulates to clean itself and clean the soles. Then, the water stains on the soles are absorbed dry by the strong absorbent cotton.

Product and Specification

产品及规格：

Model	HB-10	HB-13	HB-15	HB-18	HB-23	HB-28	HB-30
External mm	1000760145	1300760145	1500760145	1800760145	2300760145	2800760145	3000760145
Cleaningarea mm	420*552MM	720*552MM	970*488MM	1270*552MM	1340*552MM	1840*552MM	2040*552MM
Deying zone mm	430*560MM	430*560MM	410*488MM	430*560MM	860*552MM	860*560MM	860*560MM
Startup mode	Automatic sensing	Autumatic sensing	Automatic sensing	Automatic sensing	Automatic sensing	Automatic sensing	自动感应
Tank capaccity	7L	15L	17L	22L	35L	45L	45L
Drainage method	A/M	A/M	A/M	A/M	A/M	A/M	自动/手动
Voltage	220-240V	220-240V	220-240V	220-240V	220-240V	220-240V	220-240V
KW	120W	140W	140W	140W	200W	200W	200W
PSL	15W	30W	30W	30W	30W	30W	30W
Safetu Products	Overload/leakage protection	过载/漏电保护	过载/漏电保护	过载/漏电保护	过载/漏电保护	过载/漏电保护	过载/漏电保护
rotational speed	10m/min	10m/min	10m/min	10m/min	10m/min	10m/min	10m/min
dB	<60db	<60db	<60db	<60db	<60db	<60db	<60db
Life time	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304
maximum load bearing	150Kg	220Kg	220Kg	400Kg	400Kg	400Kg	400Kg
Weight	40Kg	70Kg	70Kg	90Kg	160Kg	200Kg	200Kg
